69kv tapered octongal steel galvanization electric pole power distribution

FOB Reference Price:Get Latest Price
  • 1 - 99
    US $500.00
  • 100 - 499
    US $300.00
  • 500 - 999
    US $250.00
  • >=1000
    US $200.00
Supply Ability:
300 Pole/Poles per Day If urgently ,we can make the shipment wihtin 3 days
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
yinhe
Model Number:
Electrical steel transmission line poles
galvanizied:
octongal steel galvanization electric pole power distribution
Torlance:
+- 2%
Standard:
ISO
Welding standard:
AWS D 1.1
Gavanization standard:
ASTM A 123
Warranty:
15 years
Manufactury capacity:
300 pieces per day
Type:
Electrical steel transmission line poles
Material:
Q235,Q345,Gr65,S500MC Steel
Surface Treatment:
Hot Dip Galvanized
Packaging & Delivery
Packaging Details
Our poles as normal cover by Mat or cotton blanket at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
for 69kv tapered octongal steel galvanization electric pole power distribution
Delivery Time
as per customer request.
Video Description
Product Description

Product Application

"Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion and distribution ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on"

SPECIFICATIONS FOR STEEL ELECTRIC POLE
Service life
more than 50 years
Thickness
2.3mm-30mm
Height
4m-60m
Working load
2.5 KN -100 KN
Voltage
10KV~550KV
Package
As per customer request
Installation Method
Flange Connection / Direct Buried
Galvanization
GB/T 13912-2002 / ASTM A 123 / BS729
Application
Electricity Transmission and Distribution / Construction / Substation Structure
Floodlighting for square and port
Street lighting /Traffic Lighting
Material
Q235B (SS400)
usually  applied on lighting pole
Q345B(ASTM A572 Gr.50)
S355 JR S355J
usually applied one distribution pole or high mast pole
Q460 (ASTM A572 Gr.65)
usually applied on transmission pole
Shape
Polygon / Tapered round /  Dodecagon
Welding Standard
GBT 12467.2-2009
AWS D 1.1
BS EN 1011-1

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications

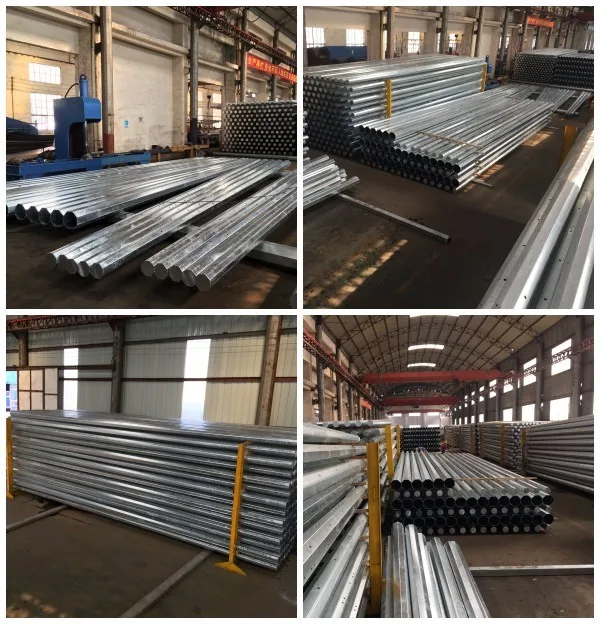

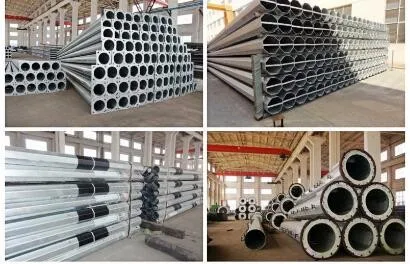

Detailed Images

Welding

"All of our welding have more than 10 years o experience on internation market
All get the CNAS welding certificate
Penastration :100%
Standard :AWS D1.1 "

Galvanization

"Standard :ASTMA 123
Thickness :Min 86um
Surface :The surface is smooth and without burr
Uniformity :Non-stick of copper afer being etched into the Copper sulfate solution four times
Adhesion:Penning five time ,no sign of convexo-convex and without stripping."

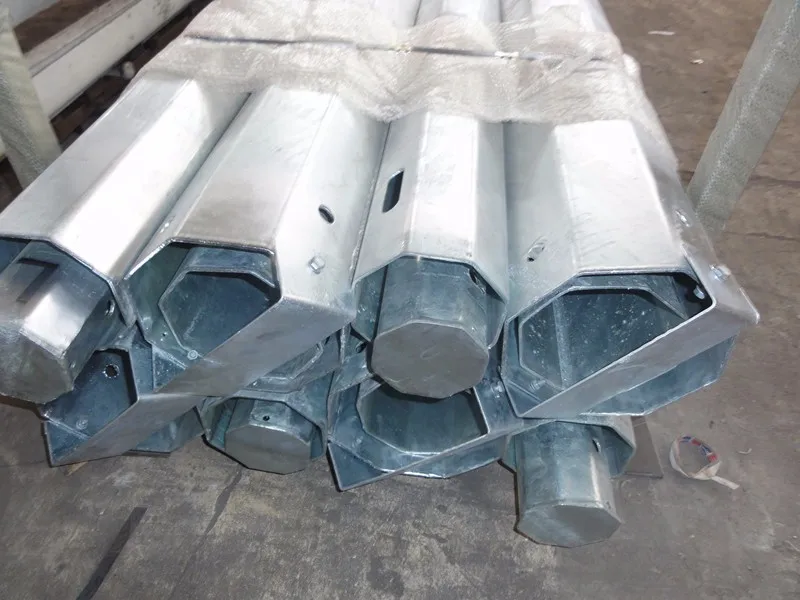

Package

Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.

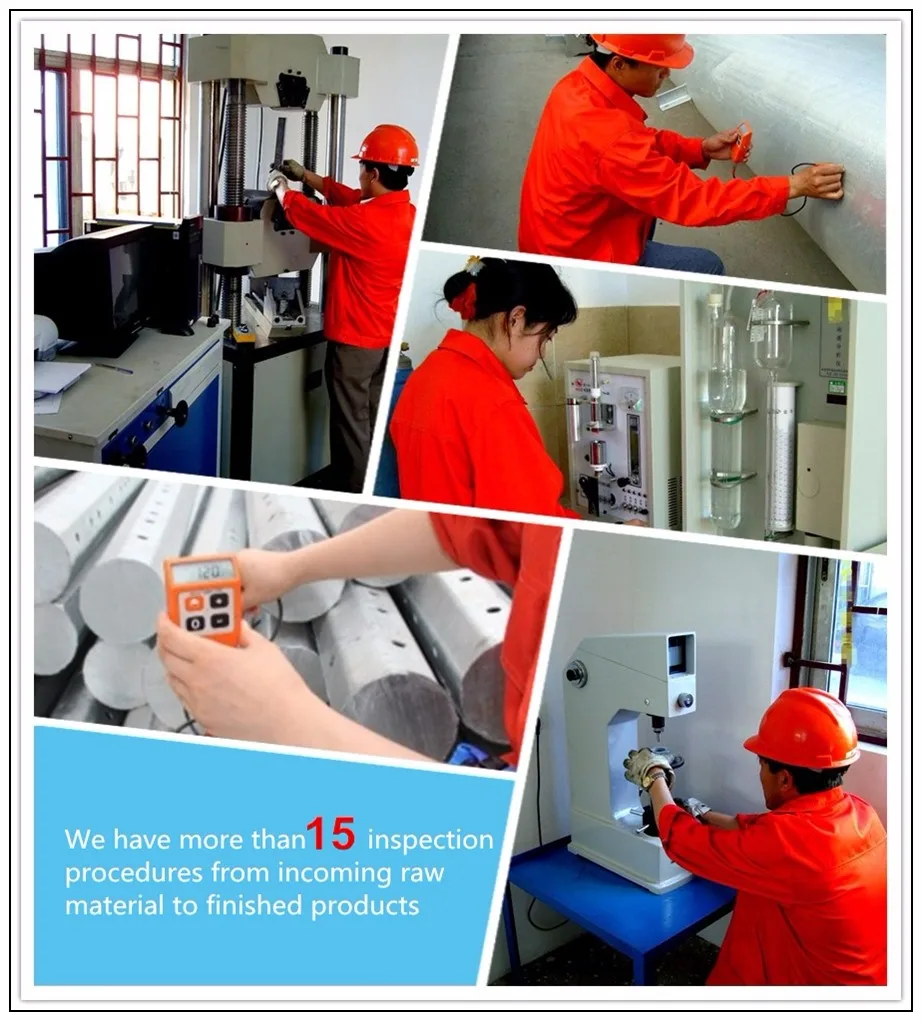

Inspection

"To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate . .
3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment"

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
11800(L) * 2300 (W) * 2300(D)
Weight
26 T



Packaging Details
Normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required.
